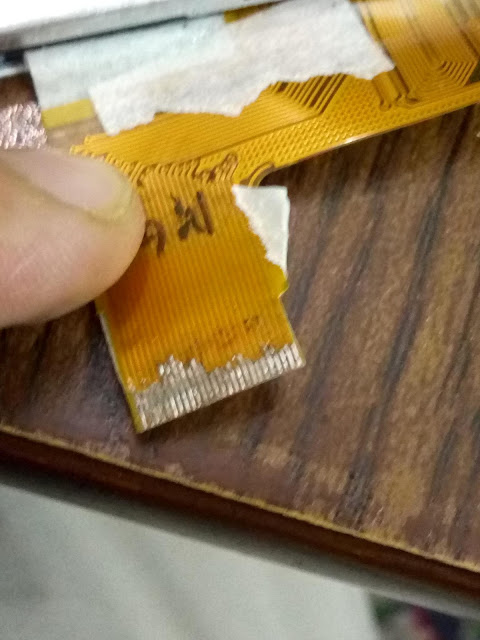

LCD strip of photo frame, got broke just near its connections with main board (prolonged pressure/weight?over it caused this), so the terminal part of strip was cut straight a little proximal to the point of breakage, and the plastic covering of strip was scraped, exposing the underlying copper, which was then given a layer of soldering wire so as to strengthen the connections and the back of strip was given support with a paper tape, and finally the photo frame was assembled.
Viola it worked good.
In the next step, a usb wire was connected inside ,to the power points of the board, and so 5 volts input cable connection was made.
